Series TA-DT – Agricultural medium double PTO mulchers

Richiedi un preventivo | Request a quote

    I have read and I accept the processing of my personal data as reported in the Privacy Policy


    Available in 7 versions: TA-DT 120 / 130 / 140 / 150 / 160 / 180 / 200

    • Replaceable anti-wear slide and adjustable to three positions to vary the cutting height.
    • Three-point hitch cat. I e in cat. II
    • Attack with lateral translation of 330mm The translation is manual with stop on 6 different positions. Available as optional hydraulic translation with hydraulic cylinder.
    • Attack in the “double PTO” version, the machine can be installed on both the rear and front lift without having to change the configuration of the machine.
    • Front protection with steel strips. Rear support roller with height-adjustable roller scraper.
    • Transmission made with gear box and belts, possibility of inverting the pulleys for operation at 540 rpm or 1000 rpm.
    • Rotor can be equipped with knives for greater shredding capacity and lower power requirement. Rotor that can be equipped with hammers to safely deal with branches and shrubs up to 60mm in diameter.
    • Hammer, triple knife.

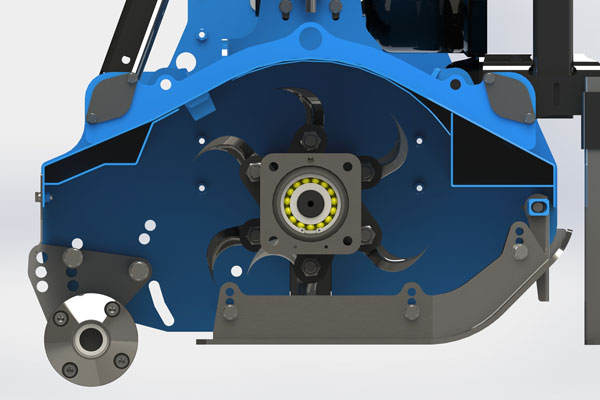

    • The rear idle roller can be configured in 6 distinct positions, which allow the volume and geometry of the case to be varied. There are three height positions away from the rotor (to increase the cutting volume) and three height positions near the rotor (to decrease the cutting volume), this allows you to configure the machine according to the amount of material to be cut (and therefore of the required power) and of the size you want to obtain.


    • Hydraulic translation with hydraulic cylinder.

    More info

    Series TA-DT – Data Sheet
